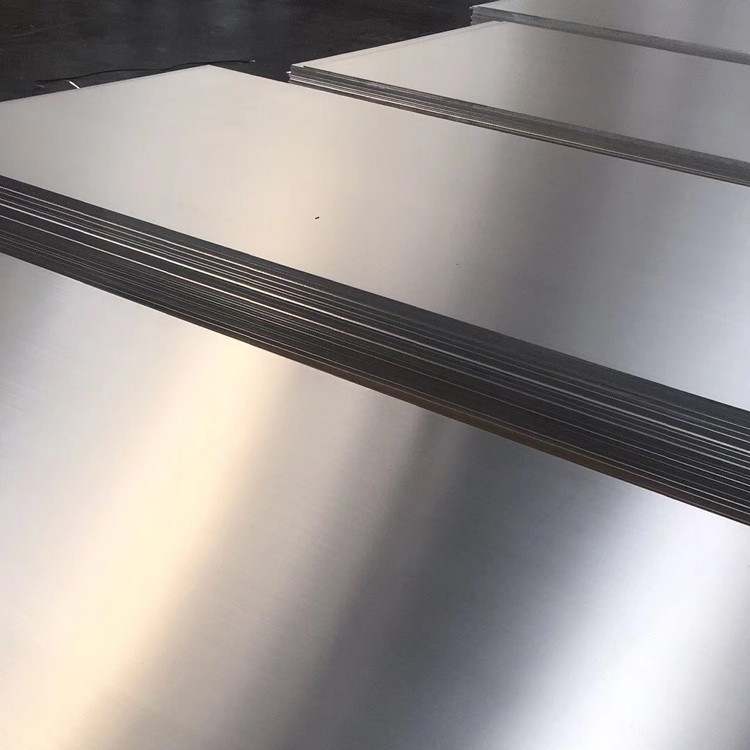

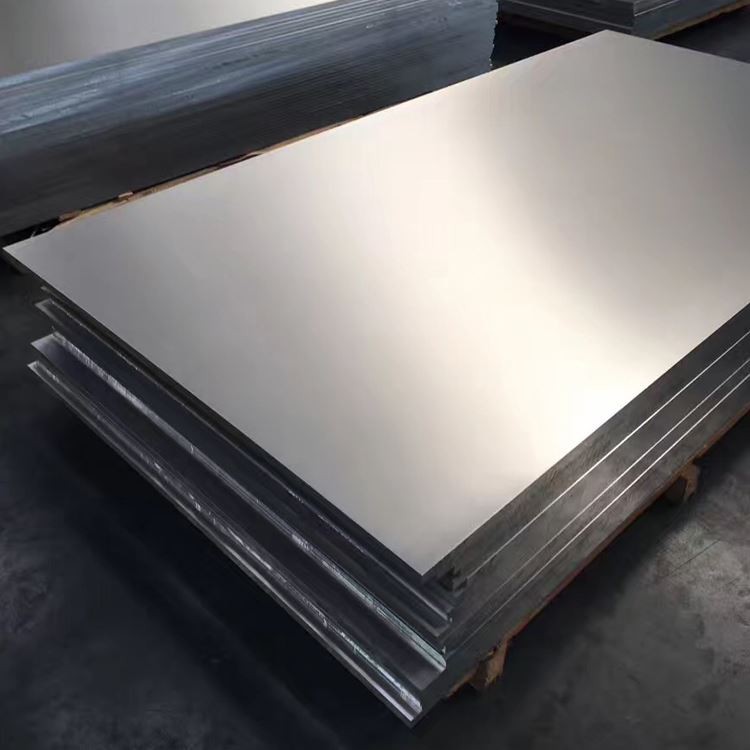

5052 txhuas phaj

5052 txhuas phaj yog qhov dav dav siv xeb pov thawj ua haujlwm ua haujlwm txias, tshwj xeeb muaj zog, zoo nkauj, thiab tuaj yeem ua tiav.

Xa kev nug

1.}} cov khoom siv & cov txheej txheem tsim khoom

5052 aluminium alloy (Astm B209, Ams 4002) cov yam ntxwv chromium alloying ua kom zoo rau corrosion tsis kam thiab muaj npe:

Alloy Scienceistry:

Magnesium (mg): 2.2-2.8% (tshuaj tiv thaiv ntxiv)

Chromium (CR): 0.15-0.35% (corrosion tsis kam)

Hlau (FE): tsawg dua lossis sib npaug rau 0.40% Max

Silicon (si): tsawg dua los yog sib npaug rau 0.25% max

Tooj liab (Cu): tsawg dua los yog sib npaug rau 0.10% Max

Cov khoom siv hauv paus:

Aluminium (Al): Ntau dua lossis sib npaug nrog 96.7% (tshuav nyiaj)

Ib txoj kab lus:

Zinc (Zn): Tsawg dua lossis sib npaug rau 0.10% Max

Manganese (MN): tsawg dua lossis sib npaug rau 0.10% Max

Titanium (ti): tsawg dua lossis sib npaug nrog 0.15% Max

Advanced tsim cov txheej txheem:

Nruam casting: {{680-720℃molten hlau kub

Kub Rolling: Pib Txo Ntawm 450-510 degree

Colding Cold: Thaum Kawg txo (30-80}% txo)

Kev kho kom ruaj khov:

H32: Me me tawv tawv tawv + ruaj khov

H34: Nruab nrab tsis meej Hardened + ruaj khov

H38: hard strain hardened + ruaj khov

Nto Kho: Zeb tiav, txhuam hniav lossis cov kev xaiv embossed

Ntawv pov thawj rau ASM209 thiab EN 485 tus qauv nrog tag nrho cov txheej txheem sib tw .

{{02. cov khoom siv tshuab hluav taws xob los ntawm kev kub siab lub xeev

Ntiag tug	Saib Tauj	H32 Tem	H34 Tem	Kuaj Tus Qauv
Qhov kawg tensile lub zog	170-215 mpa	230-265 mpa	260-290 mpa	ASTM B557
Yield zog (RP0.2)	65-105 mpa	195-215 mpa	220-240 mpa	ASTM B557
Elongation (%)	18-25%	8-14%	6-10%	ASTM B557
Tawv muaj zog	125-145 mpa	155-175 mpa	170-190 mpa	ASTM B831
Xyooj lub zog	310-350 mpa	440-480 mpa	480-520 mpa	ASTM E238
Qeeb zog lub zog (10⁷)	90-115 mpa	110-135 mpa	120-145 mpa	ASTM E466
Hardness (Brinell)	47-52 hb	60-68 hb	68-75 hb	Astm E10
Kev Cuam Tshuam	25-30 J	20-24 J	15-20 J	ASTM E23

3. Kev Kho Mob & Microstructure tswj

Sab hardening tshuab:

Txias yob txo kev txiav txim txiav txim siab kawg cov khoom:

H32: {8-15% txo

H34: {15-22}% txo

H38: 30-40}% txo

Kev kho ruaj khov: {120-160℃rau 1-3 teev

Cov yam ntxwv microstructural:

Lis loj: Astm 5-6 (40-60 μm)

Thaub dispersid theem:

Al₃mg₂ hais (2-5 nm)

Al₇cr nag lossis daus (10-30 nm)

Kev Tiv Thaiv Kev Nyab Xeeb:

O Temper: 1 × 10⁸ / cm²

H38 Tem: 6 × 10¹⁰ / cmo

Cov Cheebtsam Kev ntxhib los: Muaj zog tooj dag {110}<112>

Recrystallization feem feem: tag nrho cov recrystallized nyob rau hauv h npau taws

4. diational specifications rau phaj

Chaw ua uas tsis tau haus	Cov Qauv Qeb	Precision Kev Zam	Kev Muaj Peev Xwm Tshwj Xeeb
Qhov tuab	0.5-150 hli	{1-3% (sib txawv ntawm cov ntsuas cua)	Mus txog 200 hli
Qhov dav	1000-3000 hli	{5-15 hli	Txog li 4500 hli
Qho ntev	2000-12000 hli	{10-30 hli	Txog 18, 000 hli
Huv	5-15 mm / m	{{0 {}} hli / m (precision)	-
Nto roughness	0.4-1.2 μm ra	0.2-0.4 μm ra (polished)	Daim iav tiav
Ntug dej	Zeb ntug	Squared lossis beveled	CNC Ntug Profiling

Txoj kev ua lub peev xwm:

Ncab sib sau ua ke: txog 30% elongation

Daim duab sib sib zog nqus: LDR ntawm 1.8-2.2

Hydroforming: cov duab ua haujlwm nyuaj

Nres sib sau: tsawg kawg yog khoov radius 1t (O Tauj)

Dov Tswj: Cov Ntawv Qhia Nruam

{{05. corrosion tsis kam ua

Huab cua	Kev ntsuas kev ua haujlwm	Corrosion tus nqi	Txoj Kev Tiv Thaiv
Dej hiav txwv immersion	Zoo tshaj	<0.002 mm/year	Alodine 1200s hloov dua siab tshiab
Nqaum huab cua	Zoo tshaj	0.001-0.003 hli / xyoo	Cov xim tshuab
Kev Siv Tshuaj	Zoo	0.01-0.1 hli / xyoo	PVDF Txheej
Automotive ntsev Tsuag	Zoo tshaj	ASTM B117 Ntsuas A	E-tsho loj pretricatment
Kev ntxhov siab corrosion	Zoo tshaj	SCC threshold >50MPA	-

Cov Kev Xaiv Deg:

Zeb Ua Kom Tiav: Tus Qauv Tiv Thaiv Zaj Duab Xis

Anodizing: Hniav lossis tawv tawv

Hmoov txheej: Ntau cov kev xaiv xim ntau

PVDF Txheej: Cov huab cua zoo dua

SCOMATE hloov dua siab tshiab: alodine 600 series

Embossed nthwv dej: Pob zeb diamond lossis linear qauv

{{06. tshuab machining & Fabrication khoom

Kev phais	Lub cuab yeej	Pom zoo tsis	Cov Tso Tawm Zoo Dua
Kev tso dej txiav	Kev siab siab	{{03500-4000 bar, 8-15 mm / min	{0.1-0.3 hli
Laser txiav	Fiber laser	{{0 {}} kw zog, 5-20 m / min	Ra 3-8 μm
Kev khiav	Carbide cov cuab yeej	{{03000-5000 rpm, 1500-3000 hli / min	Burr-dawb npoo
Tshum	HSS Tooling	{{0 {}} strokes / min	Nws thev
Blanking	D2 Cuab Steel Hlau	Clearance 8-12} cov khoom tuab	Yam tsawg kawg 1.5T lub vojvoog

Fabrication Zoo:

Weldability: zoo heev tsis muaj preheat

Shearability: Cov Khoom Siv Khoom Uas Nyuaj Hnav

Formancion: Kev du ncauj nyob hauv Annealed State

Koom Nrog: Tau tshaj nrog txhua txoj kev

Policability: Zoo heev nto tiav cov yam ntxwv

7.} vuam & koom nrog technologies

Optimal Welding Txheej Txheem:

Roj Hlau Hlau Arc Vuam (Gmaw):

Hlau: ER5356 lossis ER5556

Kev thaiv cov roj: Argon lossis Ar +25% nws

Tungsten inert gas (gtaw):

Cov Khoom Siv Hluav Taws Xob: Ewth-2 (2% Thorium)

Roj txaus: 12-18 l / min

Kuj tseem pom VUAM VUAM:

Siab: 2.5-4.0 kn

Sijhawm: 0.2-0.5} sec

Cov hau kev tshwj xeeb uas koom nrog:

Adhesive Bonding:

Epoxy Cov Qauv: 15-25 mpa mpa

Metharacrylate: 12-20 mpa mpa

Mechanical Fastening:

Nws tus kheej tho rivete

Dig Muag Rivetse

Kho Tshuab

Tshuab:

Aluminium-Silicon Muab Hlau

Rauv lossis Torch Brazing

{{08. Cov Khoom Siv Rau Lub Cev Rau Cov Kws Tsim Khoom Lag Luam

Ntiag tug	Tus nqi	Tsim Muaj
Ceev	2.68 g / cm³	Kev Kho Kom Zoo Dua Zog
Cov tub ntxhais hluas lub modulus	70.3 GPA	Tiffness hauv Tsim
Poisson tus piv	0.33	Kev faib tawm kev ntxhov siab
CTE ({20-100 degree)	23.8 μm / Mees Qhaj	Thermal nthuav dav
Thermal conductivity	138 W/m·K	Kev Hloov Cua Sov
Hluav Taws Xob Kev Tshaj Tawm	35% iAcs	Daim Ntawv Siv Hluav Taws Xob
Melting ntau	605-650 degree	Ua Kev Nyab Xeeb Kev Nyab Xeeb
Sib nqus permeability	<1.01	Electromagnetic Meutrality

9. Zoo Tswj & Ntawv Pov Thawj

Kev Ntsuas Xyuas Cov Quav:

Tshuaj Ntsuam Xyuas Tshuaj: Optical Emission Spectroscopy

Kev Kuaj Txhua: Batch / Ntau Daim Ntawv Pov Thawj

Corrosion kuaj:

ASTM G67 rau intergranular corrosion

ASTM G85 rau cov tshuaj tsuag ntsev

Tsis yog-ua kev sim siab:

Ultrasonic Scanning (Astm B594)

EDDY Kev Ntsuam Xyuas Tam Sim No

Soj ntsuam zoo soj ntsuam:

Pom ib qho ASTM B209

Kev Ntsuas Txuj Ci

Ntawv Pov Thawj & Ua Raws:

ISO 9001: 2015 Kev Tsim Kho Zoo

As9100 Aerospace Daim Ntawv Pov Thawj

Nadcap Tshwj Xeeb

RoHS & Xu Ua Raws

Marine faib: ABS, DNV, LR

FDA Ua raws li kev sib cuag

10.} Cov Ntawv Thov Kev Ua & Tuav Tes

Thawj cov ntawv thov:

Cov tub nce nkoj thiab cov khoom sib txuas lus

Kev thauj mus los Floring thiab Panels

Cladding Tshuab

Cov Khoom Siv Tshuaj

Khoom Noj & Dej Haus

Hluav Taws Xob Hluav Taws Xob

HVAC dasterwork

Automotive lub cev panels

Tuav & Ntim Kev Cia:

Kev Tiv Thaiv Zaj Duab Xis: PE lossis Tsiaj Txheej

Kev taw qhia kev cia: Ntsug lossis tiaj

Stacking: ntoo separators txhua txheej

Lifting: Wide belt slings (>150 hli)

Kev tswj hwm ib puag ncig:<70% humidity

Ntim: Desiccant loaded tshuab

Kev Thauj Mus Los Yuav Tsum:

Huab Cua Ntawm Weatherming

Ntug kev tiv thaiv tshuab

Qhov tsis yog xim hlau thaiv

Kev Txhawb Nqa Cov Phiaj Rau Cov Hlau

Iso thawv specifications
