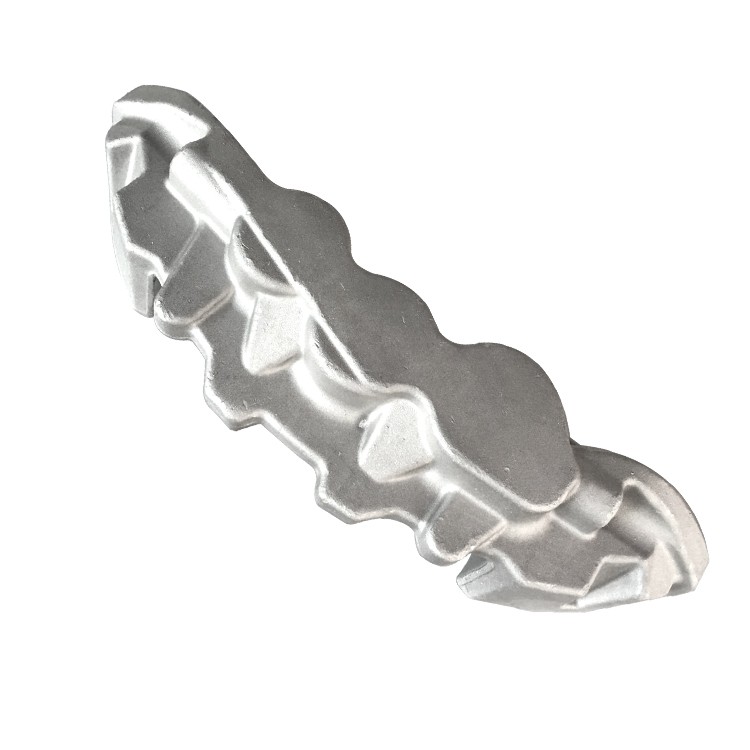

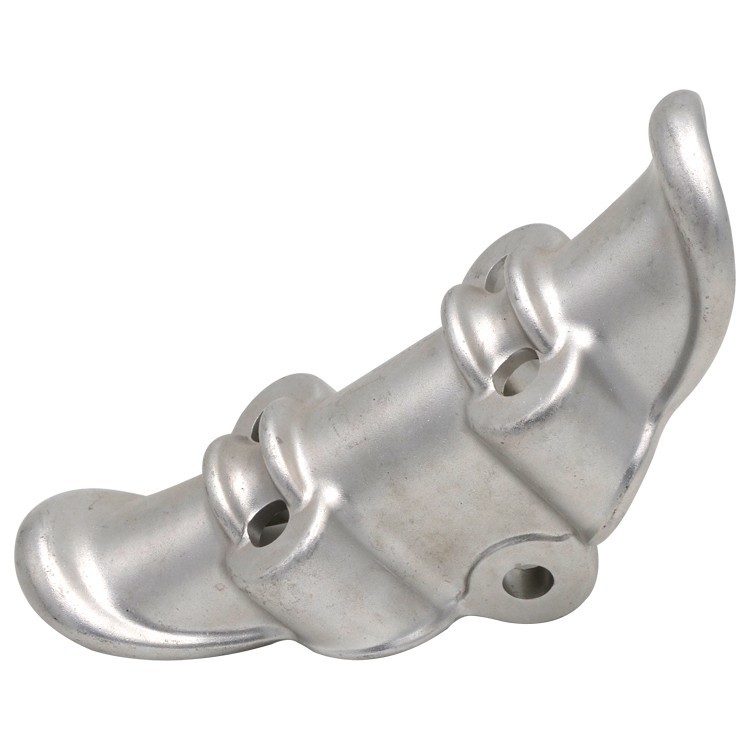

Aluminium Alloy Aviation Tuag Forging Qhov Chaw

Aluminium Alloy Aerospace Forgings xa cov kev lom zem tsim los ntawm kev siv tsis lees paub kev lag luam, thiab cov ntaub ntawv tsis zoo, thiab zoo heev corrosion, thiab zoo heev corrosion, thiab zoo heev corrosion.

Xa kev nug

1. Cov Khoom Siv Txheej Txheem & Cov Txheej Txheem Tsim Khoom

Txhuas Alloy Aviation Kev Forging Qhov chaw yog tsim tawm los ntawm kev ua haujlwm hnyav, thiab kev cuam tshuam zoo rau kev ua haujlwm siab, xws li 2xxx thiab 7xxx thiab 7xxx thiab 7XX series) {. Cov ntaub ntawv forging ua kom cov nplej txuas ntxiv mus rau qhov chaw muaj peev xwm thiab kev nyab xeeb ntawm qhov chaw nyob hauv qab loads {}}

Feem ntau Aerospace Aluminium Alloy cov qib kawm thiab lawv cov yam ntxwv:2xxx series (al-cu-mg system):

Cov qib: 2014, 2024, 2618.

Cov yam ntxwv: Lub zog siab, kev ua kom zoo heev tsis muaj zog, zoo} Yog ib qho ntawm cov kev siv lub zog zoo ntawm kev nce siab kub.

Tseem Ceeb Alloying Ntsiab: Tooj (Cu), magnesium (MG), MNANBE (MN) .

7xxx series (al-zn-cu system):

Cov qib: 7050, 7075, 7475.

Cov yam ntxwv: Ultra-siab lub zog, heev muaj zog zog, lub zog zoo tshaj plaws breatness (SCC) dua 7075 thaum tswj lub zog siab {}}

Tseem Ceeb Alloying Ntsiab: Zinc (zn), magnesium (MG), tooj (CU), chromium (zirconium (zirconium (zirconium (zircon).

8xxx series (Al-Li System):

Cov qib: 2099, 2195, 2050.

Cov yam ntxwv: Tom ntej-Generation Aerospace alloys nrog qis dua ntom ntom thiab hnyav txhim kho zog thiab ua rau kev ua kom muaj kev qaug zog zoo nkauj.

Tseem Ceeb Alloying Ntsiab: Lithium (Li), tooj (Cu), magnesium (mg), zinc (zn) .

Cov khoom siv hauv paus:

Aluminium (Al): Tshuav

Kev tswj kev impurities:

Kev tswj hwm nruj ntawm cov kab hlau xws li hlau (fe) thiab silicon (si) yog ua kom muaj kev txhim kho cov khoom siv roj teeb thiab ua kom puas tsuaj {}}

Cov txheej txheem tsim khoom (rau Aerospace tuag tsis lees paub): Cov txheej txheem ntau lawm rau Aerospace tuag tsis lees paub thiab muaj kev ntseeg siab heev thiab kev ntseeg tau zoo ntawm kev lag luam aviation {}}

Cov Khoom Siv Raw Xaiv thiab Ntawv Pov Thawj:

Aerospace Qib Rov Pom cov nqi them nyiaj yog xaiv . Cov ntaub ntawv siv tshuaj lom neeg, suav nrog cov khoom siv kub hnyiab, cov khoom siv cua kub, thiab lwm yam}

Nruj siv tshuaj lom neeg tshuaj xyuas kom ua raws li cov txheej txheem aerospace xws li Ams, Lil, ASTM .

Txiav thiab kev kho mob ua ntej:

Billts yog precisely xam thiab txiav raws li cov duab geometric uas muaj kev cuam tshuam nrog kev txhim kho kom sov tuaj yeem cuam tshuam nrog kev ua kom ua haujlwm zoo..

Tso kev sov:

Billts yog precisely rhuab hauv Adnanced furning lossis nrog kev tiv thaiv cua sov los txo cov oxidation .

Tuag Forging Txheej:

Ntau-pass tuag forging yog ua tau siv ntau cov kab ke hitect los ua kom tiav cov txheej txheem kev sib tw, kom tsis txhob muaj cov hlua khi, kom tsis txhob muaj cov hlua khi, ua kom tsis txhob muaj cov kab ke

Pre-Forging, ua tiav forging, thiab precision forging: Feem ntau yog koom nrog ua ntej-forging (npaj forging nruj) {} los ua kom zoo rau cov qauv sab hauv {}}

Trimming thiab xuas nrig ntaus:

Tom qab forging, ntau tshaj flash nyob ib ncig ntawm cov periphery ntawm kev forging yog tshem tawm {}} rau cov kab noj hniav sab hauv lossis qhov punching yuav tsum tau {}}

Kev Kho Cua Sov:

Kev Kho Kub Kho Kub: Ua tau nyob rau hauv qhov ntsuas kub uas qhia tau yooj yim thiab sijhawm kom ua tiav cov ntsiab lus tag nrho ({degree) thiab tsawg dua li 15 vib nas this) yog tseem ceeb .

Quenching: Txias sai sai ntawm qhov kev daws qhov kub, feem ntau los ntawm cov dej quenching lossis cov khoom quenching lossis ncua quenching lossis ncua.

Kev Kho Mob Laus: Ib theem ib theem lossis ntau theem neeg muaj kev laus yog ua raws li cov qhab nia Alloy thiab cov kev ua tau zoo kawg.

T6 Tauj: Muab lub zog siab tshaj plaws .

T73 / T7351 / T7451 / T7651 Tempers: Rau 7xxx series, kev faib tawm yog siv los txhim kho corrosion kev ntxhov siab (scc) thiab exfolas yuav tsum tau ua rau aerospace kev siv rau Aerospace cov kev pab cuam {}}

Kev ntxhov siab nyem:

Tom qab kev kho cua sov, zam tau feem ntau raug rau cov kev ntxhov siab ntau ntxiv, thiab txhim kho kev ruaj ntseg tom qab, thiab txhim kho kev ruaj ntseg tom ntej {}}

Xov & Kev Soj Ntsuam:

Deburring, tua chanening (txhim kho kev qaug zog kev ua tau zoo), cov tshev ua kom zoo, ntsuas qhov seem .

Kev kuaj cov cuab yeej kev sib tw thiab cov cuab yeej kuaj cov cuab yeej yog ua kom cov khoom ua raws li cov qauv aerospace {}}

{{02. cov khoom siv mechanical ntawm txhuas alloy Aviation Tuag Forging ntu

Cov khoom siv tshuab ntawm txhuas alloy aviation kev tuag forging ntu yog qhov tseem ceeb rau kev tswj hwm ruaj khov (st)

Cov Hom Khoom	2024- T351 Cov Nqi	7050- T7451 Cov nqi raug	7075- T7351 Cov Nqi	2050- T851 Cov Nqi	Kev Ntsuas Cov Lus Taw Qhia	Lub hom phiaj
Qhov kawg tensile lub zog (UTS)	440-480 mpa	500-540 mpa	480-520 mpa	550-590 mpa	L / lt / st	ASTM B557
Paib zog (0.2% ys)	300-330 mpa	450-490 mpa	410-450 mpa	510-550 mpa	L / lt / st	ASTM B557
Elongation (2 nti)	10-18%	8-14%	10-15%	8-12%	L / lt / st	ASTM B557
Brinell hardness	120-135 hb	145-160 hb	135-150 hb	165-180 hb	N/A	Astm E10
Qeeb zog lub zog (10⁷ Cycles)	140-160 mpa	150-180 mpa	140-170 mpa	170-200 mpa	N/A	ASTM E466
BLACTURE TAIS K1C	30-40 mpa√m	35-45 mpa√m	28-35 mpa√m	30-40 mpa√m	N/A	ASTM E399
Tawv muaj zog	270-300 mpa	300-330 mpa	280-310 mpa	320-350 mpa	N/A	ASTM B769
Cov tub ntxhais hluas lub modulus	73.1 GPA	71 GPA	71 GPA	74.5 GPA	N/A	Astm E111

Cov khoom sib thooj thiab anisotropy:

Aerospace tuag tsis nco qab muaj cov kev xav tau nruj rau cov txheej txheem FORGAL

Aerospace cov qauv feem ntau teeb meem yam tsis pom zoo rau cov khoom siv rau cov khoom siv tshuab hauv L, thiab cov txheej txheem muaj zog txaus thiab cov txheej txheem nyuaj hauv txhua qhov kev cob qhia rau txhua qhov kev cob qhia .

3.} microstructural yam ntxwv

Lub microstructure ntawm txhuas alloy Aerospace tuag tsis lees paub yog qhov kev lees paub ntawm lawv lub zog siab, kev ua tau zoo, thiab ua rau muaj kev ua phem rau {}}

Qhov Tseem Ceeb Microstructural nta:

Ua kom zoo, hnav khaub ncaws, thiab cov qauv grain:

Cov txheej txheem Forging ua kom tiav ntawm cov ntxhib li-nrum ua kom zoo li cov tsis xws luag los ntawm cov khoom siv los ua kom zoo dua qub rau cov khoom siv tshwj xeeb tshaj plaws.

Dispersoids tsim los ntawm cov khoom siv xws li CR, MN, thiab ZR (hauv qee cov kab ke ntawm cov qoob loo uas muaj txiaj ntsig zoo heev thiab rov ua haujlwm .

Cov nplej nruam cov nplej tau yooj yim rau cov duab:

Qhov no yog cov tseem ceeb ntawm Aerospace sib tuag Forgings . ua raws li cov khoom sib nraus uas zoo li cov txheej txheem sab nraud thiab sab hauv.

Cov nplej no ntws nrawm dua nrog qhov kev ntxhov siab thawj zaug kev ua haujlwm zoo, thiab kev nyuaj siab}, sib txuas, sib txawv ntawm qhov chaw) .

Kev tswj hwm kom meej ntawm kev ntxiv dag zog txhawb nqa theem (precipitates):

Tom qab daws kev kho mob kub thiab muaj ntau qib kev laus, e .} pamev, morphology, morphology, thiab faib .

Rau 7 xxx series, kev kho mob laus (e . .

Siab metallurgical huv:

Kev tswj nruj me ntsis ntawm impurity elements xws li hlau (FE) zam kev tsim cov khoom siv tsis tshua muaj kev tsis tshua muaj xim sib xyaw .

4.} Qhov ntev tshaj tawm & kev thev taus

Aluminium Alloy Aerospace Sib Tuag Los Tseem Ceeb Yuav Tsum Tau Qhov Ntau Ntxiv, Txo Cov Nqi thiab Cov Khoom Noj {}}

Chaw ua uas tsis tau haus	Raug loj npaum li cas	Aerospace Forging Daus Siab (e . g .}}}, 11770)	Precision Machining Divance	Txoj kev xeem
Max lub hnab ntawv qhov xwm txheej	100 - 3000 hli	± 0.5% lossis ± 1.5 hli	{0.02 - ± 0.2 hli	CMM / Laser Scan
MIN Phab Ntsa Thickness	3 - 100 hli	± 0.8 hli	{0.1 - ± 0.3 hli	CMM / Thickness Tagsee
Nta ntau	0.1 - 500 kg	±3%	N/A	Hluav taws xob nplai
Nto Roughness (forged)	Ra 6.3 - 25 μm	N/A	Ra 0.8 - 6.3 μm	Profat
Huv	N/A	0.25 hli / 100 hli	0.05 hli / 100 hli	Flawe Gauge / CMM
Txoj kev sib tw	N/A	0.25 degree	0.05 degree	Lub ntsuas cua / cmm

Lub peev xwm custom:

Aerospace tuag tsis nco qab feem ntau yog customized, tsim thiab tsim raws li cov qauv 3D) thiab cov ncauj lus kom ntxaws txog kev ua lag luam tawm tswv yim {}}

Cov tuam txhab tsim muaj cov peev txheej tag nrho, kev zam txim, kev kho cua sov, kev kho cua sov, kev kho kom sov {}}

5.}}}}} Kev Kho Mob Cua Sov

Cov Khoom Siv Ntawm Aerospace Alloys yog nkaus nyob rau ntawm kev tswj hwm tshav kub ua kom muaj kev tswj hwm ua kom nruj rau cov txheej txheem kev kho cua sov.

Tauj Ntshav	Kev piav qhia cov txheej txheem	Cov Kev Siv Raug Raug	Cov yam ntxwv tseem ceeb
O	Tag nrho anealed, muag muag	Nruab Nrab Lub Xeev ua ntej kev ua haujlwm ntxiv	Qhov siab tshaj plaws ductility, yooj yim rau kev ua haujlwm txias
T3/T351	Daws cov tshuaj kub kho, txias ua haujlwm, ib txwm muaj hnub nyoog, ncab kev ntxhov siab-relieved	2xxx series, siab zog, muaj kev puas tsuaj loj ua siab ntev	Lub zog siab, kev nruj kev zoo, txo cov kev ntxhov siab nyob hauv
T4	Daws cov cua sov kho, tom qab ntawd ib txwm muaj hnub nyoog	Cov ntawv thov tsis xav tau ntau tshaj lub zog, ua qauv zoo nkauj	Lub zog nruab nrab, siv rau qhov uas yuav tsum tau ua kom tiav
T6/T651	Daws cov cua sov kho, artificialially muaj hnub nyoog, ncab kev ntxhov siab-relieved	6xxx Series General siab lub zog, 7xxx Series tshaj plaws lub zog (tab sis SCC Rhiab)	Siab zog, siab hardness, qis residual kev ntxhov siab
T73/T7351	Daws cov cua sov kho, muaj ntau, ncab kev ntxhov siab-relieved	7xxx series, siab SCC Kuj, muaj kev puas tsuaj siab rau	Lub zog siab, zoo tshaj plaws scc kuj, qis kev ntxhov siab
T74/T7451	Daws cov cua sov kho, muaj ntau, ncab kev ntxhov siab-relieved	7xxx series, zoo dua Scc tsis kam tshaj T6, qis dua T73, siab dua T73	Zoo scc thiab exfoliation tsis kam, siab zog
T76/T7651	Daws cov cua sov kho, muaj ntau, ncab kev ntxhov siab-relieved	7xxx series, zoo dua exfoliation tsis kam tshaj li T73, mob SCC tiv taus	Zoo exfoliation tsis kam, siab zog
T8/T851	Daws cov tshuaj kub kho, ua haujlwm txias, artificialially laus, ncab kev ntxhov siab-relieved	2xxx series li-alloys, siab tshaj plaws lub zog thiab modulus	Qhov kawg lub zog thiab tawv ncauj, tsis muaj kev ntxhov siab tsawg

Cov Lus Taw Qhia Txog Kev Xaiv Tsa:

2xxx series: Feem ntau xaiv hauv T351 (e .}}}}}}}}}}}

7xxx series: Ua raws li qhov yuav tsum tau rau kev ntxhov siab corrosion (SCC) thiab exfoliation corrosion, T7651, T7651, T7651 lub sij hawm ntev heev los ua kom muaj kev vam meej ntawm lub tuam txhab Aerospace ntev -.

6. tshuab machining & Fabrication tej yam

Aerospace aluminium alloy tuag forgings feem ntau yuav tsum ua kom tiav cov geometries thiab siab qhov tseeb qhov tseeb ntawm ntu kawg .

Kev phais	Lub cuab yeej	Pom zoo tsis	Lus
Txoj siav	Carbide, PCD cov cuab yeej	VC =200-800 m / min, f =0.1-1.0 hli / rev	Kev kub ceev, siab pub, ample txias, tiv thaiv ntug
Milling	Carbide, PCD cov cuab yeej	VC {=300-1500 m / min, fz =0.08-0.5 hli	Kev nrawm nrawm ntxaiv, tshuab ntau-rigidity tshuab, ua tib zoo saib xyuas nti, ntau ntau-axis machining
Kev drilling	Carbide, coated hss	VC =50-200 m / min, f =0.05-0.3 hli / rev	Dedicated tho, dhau los-txias nyiam, nruj qhov kev thev taus
Tab tom	Hss-e-pm	Vc =10-30 m / min	Ua kua ntau, tiv thaiv cov xov cov khoom muag, siab qhov chaw siab yuav tsum tau ua
Vuam	Fusion vuam tsis pom zoo	2xxxx / 7xx Xight muaj tsis zoo fusion weldability, nquag mus tawg thiab lub zog ploj	Aerospace qhov chaw ua ntej ua ntej kev sib koom ua ke lossis FSW; tom qab kev kho cua sov kho vuam vuam yog qhov tsawg
Nto Kho	Anodizing, Kev Hloov Hloov, Ntaus Pause	Anodizing (sulfuric / chromic acid), haum rau corrosion tiv thaiv thiab txheej nplaum adhesion	Tua cov peeness txhim kho kev qaug zog, muaj ntau txheej txheej tshuab

Kev Taw Qhia Fabricance:

Luam ntawv: Aerospace aluminium alloy lam tau zam txim feem ntau muaj cov khoom siv zoo ,, xav tau cov cuab yeej ntau (7 xas}

Kev tswj hwm kev ntxhov siab: Kev zam txim, tshwj xeeb yog tom qab quenching, muaj cov khoom siv sab hauv feem ntau siv rau kev kho cua sov, tom qab kev nyuaj siab} Kev nyuaj siab}

Hwj txwv: Kev siv cov khoom siv ua ke ua ke - cov kab ke}} Kuv feem ntau}} vuam fett), thiab vuam feem ntau yuav tsum muaj cov kev kho cua sov hauv zos kom rov kho cov khoom {}}

Kev Tswj Xyuas Zoo: Cov txheej txheem nruj me ntsis thiab cov kab kev kuaj xyuas ntawm qhov ntev, cov duab geometric, thiab tsis xws luag thaum lub tshuab ua haujlwm .

{{07. corrosion Kuj & Kev Tiv Thaiv Cov Tshuab

Cov corrosion tsis kam ntawm aerospace aluminium alloys yog ib qho ntawm lawv qhov kev ua tau tseem ceeb, tshwj xeeb yog kev ntxhov siab rau cov chaw sib txawv hauv cov chaw sib txawv.

Corrosion hom	2xxx series (T351)	7075 (T6)	7075 (T7351)	2050 (T851)	Kev Tiv Thaiv Txheej Txheem
Atmospheric corrosion	Zoo	Zoo	Zoo tshaj	Zoo	Anodizing, lossis tsis muaj kev tiv thaiv tshwj xeeb xav tau
Dej hiav txwv corrosion	Tswj kav	Tswj kav	Zoo	Tswj kav	Anodizing, Kev Ua Tau Zoo Txheej Txheem, Galvanic Kev rho tawm
Kev ntxhov siab corrosion cracking (SCC)	Muaj ntsis rhiab	Heev rhiab	Tsawg heev rhiab siab	Tsawg heev rhiab siab	Xaiv T7351 / T851 Tauj, lossis Kev Tiv Thaiv Cathodic
Exfoliation corrosion	Tsawg heev rhiab siab	Muaj ntsis rhiab	Tsawg heev rhiab siab	Tsawg heev rhiab siab	Xaiv Qhov Kub Siab, Cov Txheej Txheej
Intergranular corrosion	Tsawg heev rhiab siab	Muaj ntsis rhiab	Tsawg heev rhiab siab	Tsawg heev rhiab siab	Kev Kho Cua Sov

Corrosion Tiv Thaiv Cov Tswv Yim:

Alloy thiab npau taws xaiv: Hauv Aerospace, kom muaj lub zog siab aluminium alloys, muaj ntau yam sch651 rau 7 xas}}

Nto Kho:

Txoj kev: Cov qauv kev tiv thaiv zoo tshaj plaws thiab kev tiv thaiv zoo, seev cev ua yeeb yam ntawm kev ua yeeb yam (CAA)

Kev Siv Tshuaj Conversion Coneings: Pab raws li cov cim tau zoo rau cov xim thav duab lossis cov nplaum, muab kev tiv thaiv corrosion ntxiv .

Cov Khoom Siv Ua Haujlwm Siab Txheej Txheej: Epoxy, polyurethane, lossis lwm qhov kev ua tau zoo tiv thaiv kev tiv thaiv corrosion yog thov rau hauv ib puag ncig lossis cov chaw hnyav.

Galvanic Corrosion Kev Tswj Xyuas: Thaum sib cuag nrog cov hlau tsis sib xws (e {{{{} g}!

{{08. Cov Khoom Siv Rau Lub Cev Rau Cov Kws Tsim Khoom Lag Luam

Lub cev ntawm txhuas alloy Aerospace tuag thiab cov ntaub ntawv tseem ceeb ntawm kev tsim qauv hauv lub dav hlau tsim, kev ua tau zoo, thiab kev nyab xeeb}

Ntiag tug	2024- T351 tus nqi	7050- T7451 tus nqi	7075- T7351 tus nqi	2050- T851 tus nqi	Tsim Kev Txiav Txim Siab
Ceev	2.78 g /m³	2.80 G /M³	2.81 g / cm³	2.68 g / cm³	Kev Tsim Nyaj Hlav, Qhov Chaw Ntawm Lub Ntiaj Teb Tswj
Melting ntau	500-638 degree	477-635 degree	477-635 degree	505-645 degree	Kev Kho Cua Sov Thiab Vuam Qhov Rooj
Thermal conductivity	121 W/m·K	130 W/m·K	130 W/m·K	145 W/m·K	Kev tswj hwm cua sov, kub dissipation tsim
Hluav Taws Xob Kev Tshaj Tawm	30% IACS	33% IACS	33% IACS	38% IACS	Hluav Taws Xob Cov Hluav Taws Xob, Xob Laim Tawm Kev Tiv Thaiv
Cov cua sov tshwj xeeb	900 J / KGK K	960 J / Kg · K	960 J / Kg · K	920 J / Kerg · K	Thermal inertia, thermal poob siab teb muab xam
Thermal Expansion (CTE)	23.2 ×10⁻⁶/K	23.6 ×10⁻⁶/K	23.6 ×10⁻⁶/K	22.0 ×10⁻⁶/K	Kev hloov pauv sab nraud vim kev hloov pauv kub, kev sib txuas tsim
Cov tub ntxhais hluas lub modulus	73.1 GPA	71 GPA	71 GPA	74.5 GPA	Cov qauv tawv tawv, deformation, thiab kev ntsuas co
Poisson tus piv	0.33	0.33	0.33	0.33	Cov Txheej Txheem Ntsuam Xyuas Parameter
Damping muaj peev xwm	Qi	Qi	Qi	Qi	Kev co thiab suab nrov tswj

Kev txiav txim siab tsim:

Qhov kawg lub zog-rau-hnyav thiab txhav-rau-luj phim: Aerospace aluminium zam txim yog qhov tseem ceeb kom ua tiav lub teeb huab cua dav hlau thiab cov txheej txheem siab, muaj kev ua tau zoo nyob rau hauv qhov no.

Kev Zam Txim Rau Tsim: Tshaj li ntawm lub zog, ib feem ntawm lub zog ua ntej kev ua kom muaj kev zam txim thiab kev ua kom zoo nkauj, cov khoom siv nkees, cov khoom siv tsis txaus siab rau qhov no.

Kev Ua Haujlwm Qhov Kub: Aerospace aluminium alloys tsis tshua tiv taus kub, feem ntau txwv tsis pub muaj qhov kub thiab txias}

Raug kev lag luam: Aerospace Forgings muaj cov duab nyuaj, xav tau cov txheej txheem siab heev, feem ntau muaj kev sib sau ua ke thiab precision machining tshuab.

9. Kev paub tseeb & kev xeem

Kev lees paub zoo thiab kev sim tshuaj txhuas alloy Aerospace tuag ntawm kev lag luam kev lag luam thiab cov neeg yuav khoom tshwj xeeb {{}

Cov Qauv Kuaj Cov Txheej Txheem:

Puv lub neej traceability: Txhua txhua theem ntawm cov ntaub ntawv raw rau kev xa cov ntaub ntawv zaum kawg

Cov Khoom Siv Raw Khoom Noj:

Cov tshuaj lom neeg tshuaj xyuas (optical emission spectrometer, icp) kom paub tseeb nrog ams, lab, thiab lwm yam khoom siv Aerospace.

Sab hauv kev tshuaj xyuas: 100% kev sim ultrasonic (tr) kom paub tseeb tias cov billets yog pub dawb los ntawm casting yam tsis zoo thiab suav.

Forging Txheej Txheem Xyuas:

Kev tshuaj xyuas lub sijhawm tiag tiag thiab cov ntaubntawv povthawj siv rau ntawm cov cua sov, kev zam rau qhov kub, kev nyiam kub, tuag ntsuas kub, thiab lwm yam kub.

In-txheej txheem / tawm-line kev soj ntsuam ntawm forging cov duab thiab qhov ntev los ua kom muaj kev lom zem ua ntej thiab ua kom tiav kev xav tau.

Kev Kho Cua Sov Kev Tshuaj Ntsuam:

Kev tswj hwm kev tswj hwm kub thiab sau cia ntawm cov cua sov kev kub (ua haujlwm nrog 1150, quench lub sijhawm hloov chaw, thiab lwm yam kev hloov pauv, thiab lwm yam kev ntsuas.

Cov ntaub ntawv txuas ntxiv thiab kev ntsuas ntawm qhov kub / sijhawm nkhaus .

Tshuaj Muaj Kev Ntsuam Xyuas Kev Ntsuam Xyuas:

Rov ua pov thawj ntawm batch tshuaj lom neeg sib xyaw ua ke ntawm kev tsis nco qab kawg .

Cov Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej:

Tensile kuaj: Cov qauv coj hauv L, LT, thiab cov lus qhia nruj me ntsis rau UTS, EL Raws li cov qauv, kom paub qhov tseeb tau lees tias muaj nuj nqis

Kev Ntsuas Hardness: Ntau qhov kev ntsuas ntsuas ntsuas txhawm rau ntsuas cov kev sib xyaw thiab sib xyaw nrog lub zog tensile {}}

Kev Cuam Tshuam: Charpy v-motch cuam tshuam yog tias yuav tsum .

Txhab Tais Kev Ntsuas: K1C lossis Jic sim rau Cheebtsam tseem ceeb, tus yuam sij rau Aerospace kev puas tsuaj tsim kho tsim qauv .

Kev ntxhov siab corrosion cracking (SCC) kuaj:

Txhua 7xxx thiab 8xxx series Aerospace Forgings (tshwj tsis yog T6) yog {}}}}}}}}}}}}}}}}}

Nondestructive Testing (NDT):

Kev Kuaj Ultrasonic (ut): 100% sab hauv kev tshuaj xyuas rau txhua qhov tseem ceeb load-basings (raws li chav kawm AA lossis qib AFA lossis qib ANA, kab nrib pleb, kab nrib pleb}

Kev Kuaj Penetant (PT): 100% kev tshuaj xyuas (raws li Ams 2644 txuj ci) los tshawb xyuas qhov chaw txawv-tawg {}}

Eddy kev sim tam sim no (li): Tshawb xyuas cov chaw nyob saum npoo thiab ze-nto tawm tsis xws luag, nrog rau cov khoom siv tsis sib xws .

RadioGraphic Xeem (RT): X-Ray lossis Gamma-ray soj ntsuam rau qee qhov chaw tshwj xeeb.

Kev Ntsuam Xyuas Microstruction:

Metallographic kev tshuaj ntsuam xyuas kom ntsuas cov qoob loo loj, ua kom muaj kev sib tw ua haujlwm, ua kom muaj kev ua raws li kev ua raws li kev ua raws li kev ua haujlwm rau microstructiviture .

Kev kuaj xyuas sab nrauv thiab cov nto zoo tshuaj xyuas:

Ntsuas kev ntsuas 3D siv txoj kev ntsuas sib txuas ua ke nrog cov tshuab ntsuas hluav taws xob (CMM) lossis laser scanning, kom muaj kev zam siab rau qhov tseeb thiab cov duab geometric uas yog {}}

Kev sib tw saum npoo av, ua rau pom kev tsis raug .

Cov Qauv thiab Ntawv Pov Thawj:

Cov tuam txhab yuav tsum yog ASS9100 (AERPOSPACE cov txheej txheem tswj hwm zoo) tau lees paub .

Cov khoom lag luam yuav tsum ua raws li txoj hlua khi ib qho xws li Ams (AreS

En 10204 Hom 3 {{{{{{{}} 1 lossis 3.2 Daim Ntawv Pov Thawj Kev Ntsuas Cov Ntawv Muaj Peev Xwm, thiab Thib Peb-Faib Cov Ntawv Pov Thawj Tuaj Yeem Ua Raws Li Cov Neeg Siv Khoom.

10. Daim ntawv thov & Tsim Kev Txiav Txim

Aluminium Alloy Aerospace tuag tsis nco qab yog qhov tsis muaj nqis ntawm cov teeb meem dav hlau, qhov hnyav, kev ntseeg tau, thiab kev nyab xeeb .

Cheeb Tsam Thov:

Tshav dav hlau fuselage qauv: Bulkheads, kev sib txuas cov hlua khi, cov tawv nqaij tawv, thiab lwm cov khoom siv hauv lub qhov rai.

Koojtis Qauv: Tav, spar fittings, nrov plig plawg lem, itilon Cheebtsam, pylon txuas .

Tsaws Iav System: Lub ntsiab tsaws iav lub zog, kev sib txuas, cov chaw tsav tsheb, cov chaw nres tsheb, thiab lwm yam tseem ceeb siab-thauj khoom.

Lub Cav Txheej Txheem: Lub cav mounts, dai, kiv cua rab riam cuam tshuam (qee yam qauv), tsim qauv (thaum ntxov tsim) .

Qhov ntsuas siab ntsoob: Rotor taub hau, kev sib kis vaj tse, txuas Rods .

Riam phom tshuab: Missile lub cev cov qauv, cov Cheebtsam Launcher, Precision Instrument Instrument nkhaus nkhaus .

Satellites thiab huab: Cov txheej txheem thav duab, cov txuas txuas .

Tsim Zoo:

Qhov kawg lub zog-rau-hnyav thiab txhav-rau-luj phim: Ncaj qha pab txhawb rau lub dav hlau hnyav txo, ntxiv payload, thiab roj efficient .

Kev ntseeg siab thiab kev nyab xeeb: Cov txheej txheem Forging tshem tawm cov kev tsis pom kev, ua kom muaj kev qaug zog zoo, thiab kev nyuaj siab ua kom muaj kev lag luam nruj, thiab cov pa kev lag luam nruj heev .

Kev sib xyaw ua ke ntawm cov duab nyuaj: Tuag Forging tuaj yeem tsim tau ze-net -min geomuct complex, kev sib xyaw ua ke, txo qhov kev suav thiab cov kev sib dhos ua ke.

Zoo heev qaug zog: Qhov tseem ceeb rau cov khoom sib xyaw ua kom rov qab thauj khoom hauv dav hlau .

Kev txwv tsis muaj kev txwv:

Tus nqi siab: Cov khoom siv Raw, tus nqi kho tuag, thiab cov nqi kho mob tuag, thiab cov nqi kho kom zoo yog txhua tus kuj siab.

Kev tsim lub sijhawm: Tuag tsim, kev tsim khoom, thiab ntau ntau-dhau forging thiab kev kho cua sov cycles rau complex Aerospace Forgings tuaj yeem ntev.

Qhov loj me txwv: Zam txim qhov ntev yog txwv los ntawm tonnage ntawm forging khoom .

Pluag weldability: Cov kev sib tw fusion vuam cov kev kawm yog feem ntau tsis siv rau thawj lub chaw tsim hluav taws xob-cov kabmob.

Kev ua ntsuas kub siab: Alloys Alloys feem ntau tsis txhob wrertalatures ntau, nrog kev ua haujlwm kub tsawg dua hauv qab {}} degree.

Kev Lag Luam thiab Kev Txiav Txim Siab:

Tag nrho lub neej lub neej: Txawm tias tus nqi pib yog qhov siab, Aerospace tuag cov txiaj ntsig los ntawm kev siv nyiaj txiag tag nrho los ntawm kev pab tu dav hlau, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu cov nqi, thiab txo kev pab tu lub neej, thiab txo kev pab tu lub neej, txuas ntxiv}

Khoom Siv Khoom Siv Efficiency: Advanced nyob ze-Net Shaping Forging Technology thiab precision mache meatize cov khoom khib nyiab .

Ib puag ncig ua phooj ywg: Alloys Alloys muaj kev hloov kho siab heev, sib txawv nrog lub Aerospace kev lag luam cov cai yuav tsum tau ua rau muaj kev ceev faj.

Txhim kho kev nyab xeeb: Cov kev ua tau zoo tshaj plaws ntawm kev quav ntsej ncaj qha txhim kho kev nyab xeeb davhlau, sawv cev rau lawv tus nqi siab tshaj plaws .

Cim npe nrov: Aluminium Alloy Aviation Tuag Forging Qhov Chaw, Tuam Tshoj Alloy Alloy Aviation Kev Tuag Qhov Chaw Tsim Khoom, Chaw muag khoom, Hoobkas
